CAPS II Seating System

CAPS II Seating System

The CAPS II seat encourages a normal sequence of motor development by providing the opportunity to experience a symmetrical balanced sitting posture. This, in turn, will lead onto the development of the ability to move the upper body forwards and backwards. This is the first stage in the development of sitting ability.

The seat provides postural security for people with low physical ability by helping them achieve a balanced posture (with pelvis and shoulder control). This security enables head and arm movement without loss of sitting balance.

It offers the therapist and rehabilitation engineer the opportunity to help their clients actually improve their overall postural ability, whilst providing a highly functional sitting position for the user.
The effect of this type of postural management can often be seen after only two weeks, when the seat may require adjustment to shorten the seat length as the user more easily adopts the balanced ‘upright’ position.

The built-in adjustment not only allows one to achieve a correct sitting position, but it also allows the seat to grow with the individual.

Dynamic Seating Option

The tried and tested CAPS II seating system also comes with a dynamic backrest option. A gas spring fitted to the backrest allows a user to extend and then return to the set seating position. This is a good option if you want to absorb extension patterns, rather than trying to break the patterns. Dynamic footrest options are also available that allow for absorption of lower limb extension.

  • Sacral support works with the carefully designed knee-block to maintain the pelvic position
  • Highly adjustable thoracic and pelvic lateral supports help to provide trunk symmetry
  • Dynamic Seating option available
  • The strong integral framework provides reliability and durability
  • Seat depth adjustment allows growth in the seating system to provide a perfect fit
  • The flexibility of the design enables some very challenging clinical requirements to be met
  • A stable sitting base and ramped cushion support the femoral in a horizontal position
  • Available in a range of sizes and custom sizes also available
  • Range of options and customisations available
  • Seat width – 18cm to 43cm
  • Seat Depth – 19cm to 48cm
  • Backrest height – 36cm to 57cm
  • 15 degrees of fixed backrest recline available

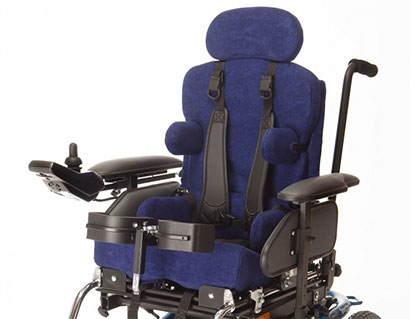

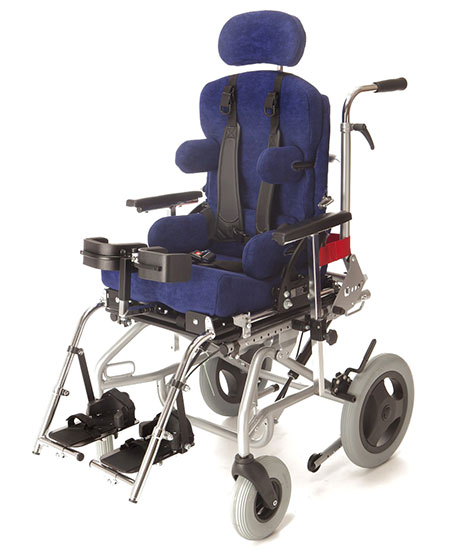

caps 2 photo front side angle

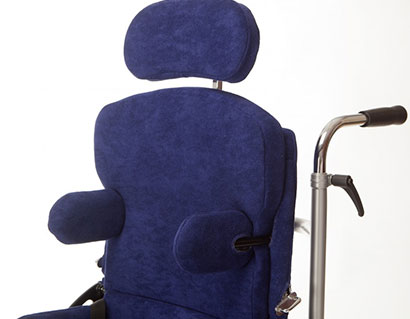

Headrest

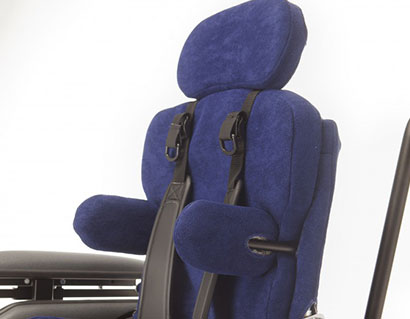

Side Thoracic support
Pelvic Support
Knee Block
Cushion Support
Integrated Foot plates

Order Process

A streamline ordering process with our step-by-step prescription form allows quick component selection to suit your client's needs. We worked hard to make the ordering process simple, while giving a range of highly-configurable options.

  • Simply specify the client measurements and wheelbase, select the components you require and we will do the rest. We will determine the optimum size for the system to suit your client.
  • Custom the system further by specifying sizes of components on the prescription form.
  • Specify custom sizes for components where required.
  • Specify a complete custom build of one or more components by providing a drawing.
